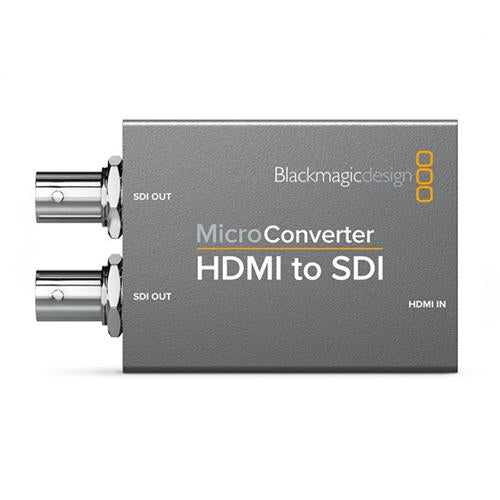

Blackmagic Design Micro Converter HDMI to SDI

Original price R 1,495.00 - Original price R 1,495.00
Original price
R 1,495.00
R 1,495.00 - R 1,495.00
Current price R 1,495.00

Take the HDMI output from laptop computers or consumer cameras and convert it to SDI for use with broadcast switchers, routers, monitors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You get 2 SDI outputs, support for Level A and Level B equipment, and power over USB!

Take the HDMI output from laptop computers or consumer cameras and convert it to SDI for use with broadcast switchers, routers, monitors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You get 2 SDI outputs, support for Level A and Level B equipment, and power over USB!

FEATURES
  • HDMI Input
  • 2 x SDI Outputs
  • Supports SD and HD Signals
  • Automatic Input Signal Detection
  • Software Control
SPECIFICATIONS

Connections

SDI Video Output

Automatically matches the SD, HD or 3G-SDI HDMI video input

HDMI

HDMI Type A in

Multi Rate Support

Auto detection of SD or HD

Updates, Configurations and Power

Micro USB

Reclocking

Yes

Standards

SDI Format Support

525i29.97 NTSC, 625i25 PAL

HD Format Support

720p50, 59.94, 60
1080p24, 25, 29.97, 30, 50, 59.94,
1080i50, 59.94, 60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M

SDI Video Rates

SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.

SDI Color Precision

4:2:2

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically detects SD, HD and 3G-SDI

HDMI Format Support

525i29.97 NTSC, 625i25 PAL
720p50, 59.94, 60
1080p24, 25, 29.97, 30, 50, 59.94, 60
1080i50, 59.94, 60

HDMI Color Precision

4:2:2

HDMI Color Space

YUV and RGB

Software



Software Control

Mac OS X™ and Windows™ software upgrade via micro USB

Internal Software Upgrade

Mac OS X™ and Windows™ software upgrade via micro USB

Via micro USB

Operating Systems

Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Windows 8.1 or Windows 10.

Settings Control

Via software utility

Power Requirements

Power Supply

+5V universal power supply included with international socket adapters for all countries

Power Consumption

2.0 Watts

Operational Voltage Range

4.4 to 5.25V DC


Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

-

-
IN THE BOX
  • Blackmagic Design Micro Converter HDMI to SDI with Power Supply
