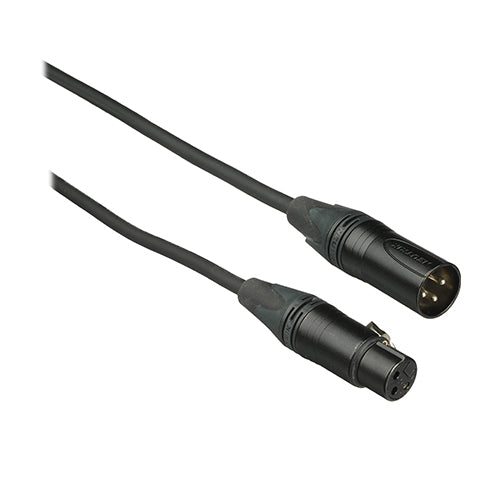

XLR Cable

XLR Cable

R 450.00 - R 7,555.00
R 450.00
R 450.00 - R 7,555.00
R 450.00

Please Check Stock Availability

Product Highlights

  • High transmission quality due to the use of fine stranding
  • Very robust due to the thick, soft PVC-jacket
  • Good protection due to the dense copper spiral shielding
  • High flexibility makes it easy to wind
  • Does not include connectors



Please Check Stock Availability

Product Highlights

  • High transmission quality due to the use of fine stranding
  • Very robust due to the thick, soft PVC-jacket
  • Good protection due to the dense copper spiral shielding
  • High flexibility makes it easy to wind
  • Does not include connectors



OVERVIEW

Overview

ONE THICK COAT... will protect the interior against mechanical wear, eg. pulling, tugging, and knotting. For this reason we equipped the STAGE 22 with a thick outer jacket of 0.252 inch. Also the electrical data and the technical construction are worth taking a look at: The STAGE 22 offers low capacity and high bending cycles, this is provided by the fine and dense individual stranding.

The shielding made of polished copper wires is 99% optically opaque (instead of the usual 85%).

Thus the STAGE 22 is the ideal cable for stage, home recorder, the leasing agent, and the installation technician.

The STAGE 22 is a very affordable cable with no need to compromise.

THE ADVANTAGES:
• High transmission quality due to the use of fine stranding
• Very robust due to the thick, soft PVC-jacket
• Good protection due to the dense copper spiral shielding
• High flexibility makes it easy to wind

THE APPLICATION:
Stage application | Broadcast wiring | Home recording | Sound
Colors: black | blue | red | icy | grey | yellow | green | violet

SPECIFICATIONS

Specifications

TECHNICAL DATA
Construction (2LI2Y0,22mm2)DY
Jacket, diameter PVC 6,4 mm
AWG 24
No. of inner conductors 2 x 0,22 mm2
Copper strand per conductor 32 x 0,10 mm
Conductor insulation PE 1,40 mm
Shielding copper spiral shielding with 0.10 mm indiv. strand
Shielding factor 99 %
Temperature range min. -20 °C
Temperature range max. 70 °C
Fire load per m 0,22 kWh
Weight per 1 m 55 g
ELECTRICAL DATA
Capac. cond./cond. per 1 m 68 pF
Capac. cond./shield. per 1 m 130 pF
Cond. resistance per 1 km 53 Ohm
Shield. resistance per 1 km 25 Ohm
Insulation resist. per 1 km > 1 GOhm
Impedance approx. 100 Ohm

Overview

ONE THICK COAT... will protect the interior against mechanical wear, eg. pulling, tugging, and knotting. For this reason we equipped the STAGE 22 with a thick outer jacket of 0.252 inch. Also the electrical data and the technical construction are worth taking a look at: The STAGE 22 offers low capacity and high bending cycles, this is provided by the fine and dense individual stranding.

The shielding made of polished copper wires is 99% optically opaque (instead of the usual 85%).

Thus the STAGE 22 is the ideal cable for stage, home recorder, the leasing agent, and the installation technician.

The STAGE 22 is a very affordable cable with no need to compromise.

THE ADVANTAGES:
• High transmission quality due to the use of fine stranding
• Very robust due to the thick, soft PVC-jacket
• Good protection due to the dense copper spiral shielding
• High flexibility makes it easy to wind

THE APPLICATION:
Stage application | Broadcast wiring | Home recording | Sound
Colors: black | blue | red | icy | grey | yellow | green | violet

Specifications

TECHNICAL DATA
Construction (2LI2Y0,22mm2)DY
Jacket, diameter PVC 6,4 mm
AWG 24
No. of inner conductors 2 x 0,22 mm2
Copper strand per conductor 32 x 0,10 mm
Conductor insulation PE 1,40 mm
Shielding copper spiral shielding with 0.10 mm indiv. strand
Shielding factor 99 %
Temperature range min. -20 °C
Temperature range max. 70 °C
Fire load per m 0,22 kWh
Weight per 1 m 55 g
ELECTRICAL DATA
Capac. cond./cond. per 1 m 68 pF
Capac. cond./shield. per 1 m 130 pF
Cond. resistance per 1 km 53 Ohm
Shield. resistance per 1 km 25 Ohm
Insulation resist. per 1 km > 1 GOhm
Impedance approx. 100 Ohm
