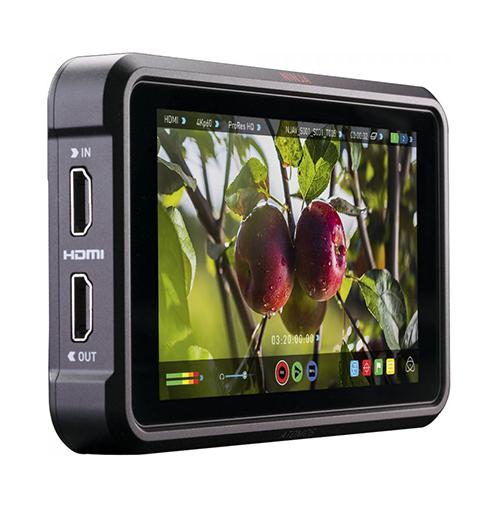

Atomos Ninja V 5" 4K HDMI Recording Monitor
The Atomos Ninja 5.2" 4K HDMI Recording Monitor features an updated operating system featuring HDR monitoring and RAW recording capabilities.
With compatible cameras, the Atomos Ninja 5.2" 4K HDMI Recording Monitor is capable of recording ProRes RAW up to 6K and supports DCI 4K HDMI. The Ninja can easily be integrated into your existing setup as it is compatible with most Atmos monitor accessories.
The Atomos Ninja 5.2" 4K HDMI Recording Monitor features an updated operating system featuring HDR monitoring and RAW recording capabilities.
With compatible cameras, the Atomos Ninja 5.2" 4K HDMI Recording Monitor is capable of recording ProRes RAW up to 6K and supports DCI 4K HDMI. The Ninja can easily be integrated into your existing setup as it is compatible with most Atmos monitor accessories.
OVERVIEW
AtomOS 11 Operating SystemThe AtomOS 11 Operating System was built for the Atomos Ninja 5.2" 4K HDMI Recording Monitor, offering new features, and an improved icon interface. Focus Peaking, Zoom, Atomos and ARRI False Color, EL Zone colourized exposure, Safe Areas, RecordAssit, PlayBackAssist, SegmentPro, and Cine Guides are among the many monitor assist functions available. The AtomHDR processing engine allows for real-time Log to PQ/HLG previewing.
5.2" Touchscreen DisplayThe 5.2" IPS screen provides you with 1920 x 1080 resolution, with 1000 cd/m2 that allows you to operate the screen in daylight. For high-quality monitoring of your footage, 10-bit colour processing, Rec.709 colour gamut, and Calibrite Display Plus/Pro support are offered.
Comprehensive ColorThe Atomos Ninja 5.2" 4K HDMI Recording Monitor supports select log formats from all major brands, these include Sony, Canon, ARRI, RED, Nikon, and Fujifilm. Additionally, custom 3D LUTs can be uploaded and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.
HDMI Interface, ProRes RAW RecordingBoth the input and output ports support up to DCI 4K video at 60 fps in all modes. 3.5K RAW at 60 fps footage is supported with select cameras. Over 55 different cameras support RAW recording over HDMI with the Ninja up to 6K at 30 fps.
wer OptionsThe Atomos Ninja 5.2" 4K HDMI Recording Monitor features an L-Series battery plate at the back of the monitor that supports NP-F L-series batteries outputting 5.8 to 7.2V. A USB-C port can also be found that supports 30W PD power delivery with the included cable. DC power sources can also be used with the included dummy eliminator.
Control OptionsIntuitive onboard control is made possible with multifunctional control buttons on the touchscreen interface. With Atomos Open Standard, an auto HDMI camera trigger is supported from Canon and Sony cameras.
FEATURES
- 1920 x 1080 Touchscreen Display
- 10-Bit Exterior Viewable Monitor
- 4K HDMI 2.0 Input/Output
- 6K30 ProRes RAW with Select Cameras
- AtomOS 11 Operating System
- 1000 cd/m² Brightness
- Supports Multiple Log Formats
- ProRes and DNxHR/HD Recording
- Record to Master Caddy II/III Hard Drive
- L-Series Battery Slot, USB-C Port
SPECIFICATIONS
| Weight | |
| Without batteries & media | 320g / 11.28oz |
| With batteries & media | - |
| With stand | 6.0kg / 13.2lb |
| Dimensions (W x H x D mm) | 151 x 91.5 x 31mm |
| Construction | Aluminium alloy chassis with ABS polycarbonate back plate |
| Mounting points | 1/4-20 UNCscrew mount; 1x top, 1x bottom |
| Power | |
| Operating power | 10 - 19W |
| Compatible batteries | NP-F series and supporting accessories |
| Input voltage (battery) | 6.2V to 16.8V |
| Battery time (based on 2 x 7.4V) |
5200mAh - up to 2hrs (monitor & record 4K +60p) |
| DC In | 7800mAh - up to 3hrs (monitor & record 4K 60p) |
|
Continuous power * Patent pending |
Continuous power with external adaptor* |
| Touchscreen | |
| Size | 5” |
| Resolution | 1920 x 1200 |
| PPI | 427 |
| Aspect ratio | 16:9 native |
| Color Gamut | REC709 HDTV |
| Look up table (LUT) support | 3D LUT (.cube format |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x, Panasonic 8:3 |
| Technology |
SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit |
| HDR | |
| AtomHDR | Yes |
| Supported Log formats |
Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm |
| HDR Recording (Gamut) | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ10k, HLG |
| HDR Monitoring (Gamma) |
Sony SGamut / SGamut3 / SGamut3.cine / BT2020 Canon Cinema / DCI P3 / DCI P3+ / BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 JVC LS300 Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| HDR Monitoring (Gamut) | Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out |
| Bit depth | 10-bit (8+2 FRC) |
| Brightness | 1000nit (+/- 10% @ center) |
|
HDR input (PQ/HLG) HDR output (PQ/HLG) |
Yes / Yes Yes / Yes |
| Video Input/Loop Out | |
| HDMI | 1 x HDMI (2.0) |
| SDI | - |
| Signal | Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
| Video Output (Play Out) | |
| HDMI | 1 x HDMI (2.0) |
| SDI | - |
| Signal | Uncompressed true 10-bit or 8-bit 422 (playback file dependent) |
| Supported Loop Out Formats | |
| HDMI to HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120 2160p 24/25/30/50/60 |
| SDI to SDI | - |
| Video Signal Conversion | |
| HDMI to SDI | - |
| SDI to HDMI | - |
| AtomXpansion Video Audio Power Extender In/Out | |
| Video | Up to 4Kp60 |
| Audio | 12 channels digital 24-bit 96KHz |
| Power | 5V-16.6V |
| Supported Codecs & Frame Rates (Record & Playback) | |
|
Video to ProRes / DNxHR (DNx utilizes a .MOV wrapper) |
Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB 4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 2K 1080p; 24/25/30/50/60/100^/120^ 1080i; 50/60i, 720p; 50/60p |
| Onboard Processing | |
| Pulldown removal |
24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD monitoring | Yes - Loop-out and playback |
| Audio In/Out (48kHz PCM Audio) | |
| HDMI | 2 or 8ch 24-bit, camera dependent |
| SDI | - |
| Audio | Line in / Mic in / Headphone out 2ch 48kHz 24-bit |
| Headphone out | 3.5mm |
| Built-in speakers | Yes |
| Remote Start/Stop | |
| HDMI |
Auto HDMI Trigger Supported Protocols - Canon, Sony, Atomos Open Standard |
| SDI | - |
| Other | LANC control - Slave |
| Playback | |
| Playlist / Genlock / LTC | Yes / - / - |
| CDNG (Recorded content) | N/A |
| ProRes (Recorded content) | All recorded files can playback. Playback in slow motion. |
| DNxHR / DNxHD (recorded content) | All recorded files can playback. Playback in slow motion. |
| Recording | |
| Pre-roll record | Yes (HD 8s, 4K 2s) |
| Custom timelapse | Yes |
| Meta data tagging | Yes (10 tags available) |
| Supported media | 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives |
| Master caddy case |
Master Caddy II (included) 75mm x 105mm x 12mm |
| Master caddy dock | 2.5” SATA to USB 2.0/3.0 |
| Supported applications |
Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015 |
| XML support | FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools |
| Accessories included | Ninja V unit, Master Caddy II x 1, 12V-3A AC power supply |
| Optional extras |
Accessory Kit: 2 x battery, 1 x charger, 1 x power supply, EVA case, USB dock, control cable, Dtap cable, Master Caddy x 4, Power supply, Sun hood Power Kit: 2 x battery, 1 x charger, 1 x power supply Other: Atomos HDMI cable, X-Rite i1DisplayPro calibration |
All specifications correct when published, subject to E&OE.
24/30/60 frame rates also means 23.98/29.97/59.94 frame rates for all resolution
* Available in future firmware updates
*** No HDMI spec for 2K DCI
^ From supported HDMI sources such as gaming consoles and graphics cards.
IN THE BOX
Monitor Only
- Atomos Ninja V 5" 4K HDMI Recording Monitor
- 12V, 3A AC Power Supply
- Master Caddy II
Bundle
- Atomos Ninja V 5" 4K HDMI Recording Monitor
- 12V, 3A AC Power Supply
- Master Caddy II
- Angelbird AtomX SSDmini (500GB)
Pro Kit
- Atomos Ninja V 5" 4K HDMI Recording Monitor
- 12V, 3A AC Power Supply
- Master Caddy II
- Battery Eliminator.
- Atomos AtomX SDI Module for Ninja V
- Atomos Connect 4K
- D-Tap Cable
- AtomX 5" Sunshade
