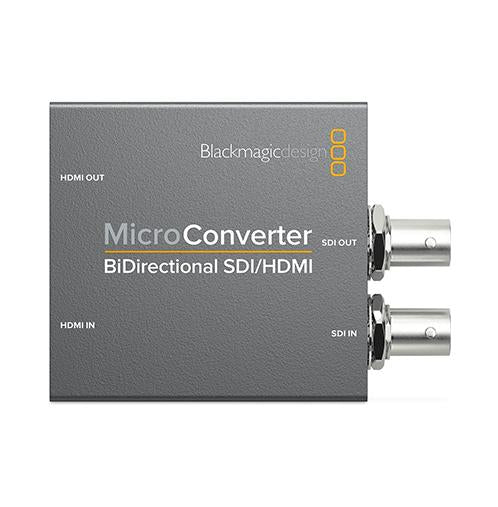

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI allows you to simultaneously cross convert between HDMI and SDI, supporting signals up to 1080p60. SDI reclocking is also supported for enhanced performance over long cable lengths.
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI allows you to simultaneously cross convert between HDMI and SDI, supporting signals up to 1080p60. SDI reclocking is also supported for enhanced performance over long cable lengths.
FEATURES
- Converts SDI to HDMI & HDMI to SDI
- Simultaneous Conversions
- 1 x Input & 1 x Output SD/HD/3G-SDI
- 1 x Input & 1 x Output HDMI
SPECIFICATIONS
Connections | |
Video Input |
1 x 3G/HD/SD-SDI 1 x HDMI type A |
Video Output |
1 x 3G/HD/SD-SDI 1 x HDMI type A |
Other I/O | 1 x Micro-USB |
Standards | |
Supported Video Standards |
SDI: 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC SD: 525i 59.94 PAL SD: 625i 50 HDMI: 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC SD: 525i 59.94 PAL SD: 625i 50 |
SDI Compliance | SMPTE 425M/424M/372M/296M/292M/259M |
Color Precision |
SDI: 4:2:2 HDMI: 4:2:2 |
SDI Color Space |
SDI: YUV HDMI: YUV |
Operating System | |
Supported Operating Systems |
MacOS 10.12 Sierra MacOS High Sierra 10.13 or later Windows 8.1 Windows 10 |
Power | |
Power Consumption | 2.5 W |
Operational Voltage Range | 4.4 to 5.25 VDC |
Physical & Environmental | |
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Relative Humidity | 0 to 90%, non-condensing |
Dimensions | 8.1 x 5.9 x 2.5 cm |
Weight | 174 g |
IN THE BOX
-
Blackmagic Design Micro Converter BiDirectional SDI/HDMI
