Blackmagic Design Micro Converter SDI to HDMI_Durban

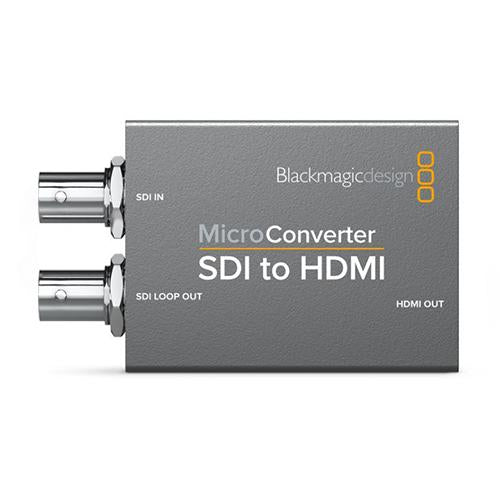

Blackmagic Design Micro Converter SDI to HDMI 3G

R 1,595.00 - R 1,595.00
R 1,595.00
R 1,595.00 - R 1,595.00
R 1,595.00

Convert from SDI to HDMI so you can output video from professional SDI video equipment to consumer HDMI televisions, projectors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You also get 3G-SDI loop through, support for Level A and Level B equipment, and power over USB!

Convert from SDI to HDMI so you can output video from professional SDI video equipment to consumer HDMI televisions, projectors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You also get 3G-SDI loop through, support for Level A and Level B equipment, and power over USB!

FEATURES
  • SD/HD/3G-SDI Input
  • HDMI and SDI Loop Outputs
  • Supports SD and HD Signals
  • Automatic Input Signal Detection
  • Software Control
SPECIFICATIONS
Connections

SDI Video Input

 1 x SD, HD or 3G-SDI

SDI Video Output

 1 x SDI loop out

HDMI Output

 HDMI Type A out

Multi Rate Support

 Auto detection of SD or HD

Updates, Configurations and Power

 Micro USB

Standards

SDI Format Support

 525i29.97 NTSC, 625i25 PAL

HD Format Support

 720p50, 720p59.94, 720p60
1080p23.98, 1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59.94、1080p 60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

SDI Compliance

 SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M

SDI Video Rates

 SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI

SDI Color Precision

 4:2:2

SDI Color Space

 YUV and RGB

SDI Auto Switching

 Automatically detects SD, HD and 3G-SDI

HDMI Format Support

 525i29.97 NTSC, 625i25 PAL
720p50, 59.94, 60
1080p24, 25, 29.97, 30, 50, 59.94, 60
1080i50, 59.94, 60

HDMI Color Precision

 4:2:2

HDMI Color Space

 YUV

Software

Software

 Mac OS X™ and Windows™ software upgrade via micro USB

Internal Software Upgrade

 Via micro USB

Operating Systems

Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Windows 8.1 or Windows 10.

Settings Control

 Via software utility
Power Requirements

Power Supply

+5V universal power supply included with international socket adapters for all countries.

Power Consumption

 1.60 Watts

Operational Voltage Range

 4.4V to 5.25V DC

Environmental Specifications

Operating temperature

 0° to 40° C (32° to 104° F)

Storage temperature

 -20° to 60° C (-4° to 140° F)

Relative Humidity

 0% to 90% non-condensing
-

-
IN THE BOX
  • Blackmagic Design Micro Converter SDI to HDMI with Power Supply
  • Power Supply with International Socket Adapters


  • SD/HD/3G-SDI Input
  • HDMI and SDI Loop Outputs
  • Supports SD and HD Signals
  • Automatic Input Signal Detection
  • Software Control
Connections

SDI Video Input

 1 x SD, HD or 3G-SDI

SDI Video Output

 1 x SDI loop out

HDMI Output

 HDMI Type A out

Multi Rate Support

 Auto detection of SD or HD

Updates, Configurations and Power

 Micro USB

Standards

SDI Format Support

 525i29.97 NTSC, 625i25 PAL

HD Format Support

 720p50, 720p59.94, 720p60
1080p23.98, 1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59.94、1080p 60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

SDI Compliance

 SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M

SDI Video Rates

 SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI

SDI Color Precision

 4:2:2

SDI Color Space

 YUV and RGB

SDI Auto Switching

 Automatically detects SD, HD and 3G-SDI

HDMI Format Support

 525i29.97 NTSC, 625i25 PAL
720p50, 59.94, 60
1080p24, 25, 29.97, 30, 50, 59.94, 60
1080i50, 59.94, 60

HDMI Color Precision

 4:2:2

HDMI Color Space

 YUV

Software

Software

 Mac OS X™ and Windows™ software upgrade via micro USB

Internal Software Upgrade

 Via micro USB

Operating Systems

Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Windows 8.1 or Windows 10.

Settings Control

 Via software utility
Power Requirements

Power Supply

+5V universal power supply included with international socket adapters for all countries.

Power Consumption

 1.60 Watts

Operational Voltage Range

 4.4V to 5.25V DC

Environmental Specifications

Operating temperature

 0° to 40° C (32° to 104° F)

Storage temperature

 -20° to 60° C (-4° to 140° F)

Relative Humidity

 0% to 90% non-condensing
-

-
  • Blackmagic Design Micro Converter SDI to HDMI with Power Supply
  • Power Supply with International Socket Adapters
