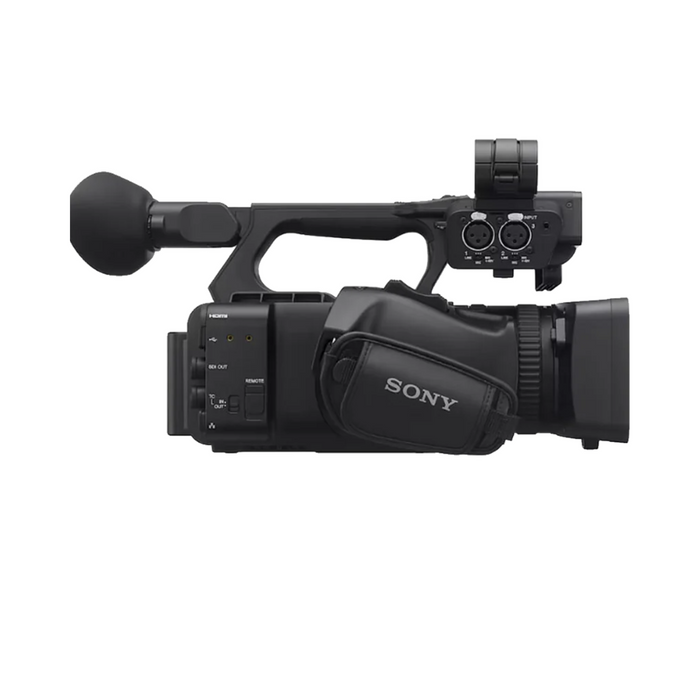

Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder
The Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder is ideal for the on-the-go creator looking for a compact camcorder providing quick autofocus performance, auto-framing and quick content sharing. Featuring a 1"-type Exmor RS CMOS sensor capable of up to UHD 4K resolution, AI-assisted autofocus and framing, and a variable electronic ND filter. The BIONZ XR processor is designed to colour-match Sony's Cinema Line Camera lineup.
The Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder is ideal for the on-the-go creator looking for a compact camcorder providing quick autofocus performance, auto-framing and quick content sharing. Featuring a 1"-type Exmor RS CMOS sensor capable of up to UHD 4K resolution, AI-assisted autofocus and framing, and a variable electronic ND filter. The BIONZ XR processor is designed to colour-match Sony's Cinema Line Camera lineup.
DESCRIPTION
1" Exmor RS CMOS Sensor
The Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder features a 1.0"-type Exmor RS CMOS sensor that employs a stacked design to provide optimal image quality, fast readout speeds along with excellent low-light performance. 4K imagery is produced using 5K oversampling with full-pixel readout.
Longer 20x Optical Zoom
The PXW Z 200 captures views from wide angles to close-ups in tight spaces using the 20x G-Series zoom equivalent to 35mm full-frame 24-480mm.
The zoom range can easily be expanded to 30x in 4K and 40x in HD.
BIONZ XR Processing
Higher frame rates, faster autofocus, improved ATW control, and excellent noise reduction is possible with the implementation of the latest BIONZ XR TM image processor.
5K oversampling with full-pixel readout condenses a large amount of information to stunning UHD 4K60 video.
Advanced AI-Assisted Autofocus
Precise human-subject recognition is achieved by AI-assisted deep learning along with 81% coverage and the fast hybrid autofocus system offers better support for both Subject Recognition AF and real-time tracking.
Pro Broadcast and Film Looks
Presets for S-Cinetone, ITU709, 709tone, HLG Live, HLG Mild, and HLG Natural can further be adjusted with black, matrix, and other adjustments. Footage coming out of the Sony PXW-Z200 can easily be colour-matched to other Sony broadcast and Cinema Line cameras.
Auto Framing
The Auto Framing Function can be activated to easily keep track of the subject. This function automatically recognises humans and adjusts the frame to keep them centred in the frame.
This is especially useful for solo shooters with this function taking the place of manual capture while you engage with the subject.
Flexible Frame Rates
The Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder enables you to capture up to UHD 4K60 video along with high frame rates of up to UHD 4K120 and 1080p HD at 240 fps. Slow motion rates include 4x at 4K30 and 5x at 4K24p with high-speed autofocus to keep your subject sharp.
Built-In Variable ND Filter
The Sony PXW Z200 4K 1" CMOS Sensor XDCAM Camcorder features a variable ND filter with a 1/4 to 1/128 ND range. This filter function enables you to adjust your exposure simply with the twist of a dial.
Full Auto Mode
In fast-paced shoots you can switch to a fully automatic function using a single switch, this automatically adjusts functions including ND, Iris, Gain, Shutter, and White Balance.
Live Streaming
Using a Wi-Fi connection or a wired Ethernet connection you can stream directly from the camera to compatible platforms using RTMP/RTMPS and SRT protocols.
Easy File Transfers
You are able to upload proxy and original clips straight from a memory card to a cloud or FTP server. Simply register a designation server in the camera, and then clips are automatically transferred when recording stops.
12G-SDI Connectivity
The Sony PXW-Z200's interface includes up to 12G-SDI input and output, timecode input and output, genlock, USB-A, USB-C, LAN, REMOTE, and additional connectors.
Advanced Image Stabilization
To ensure footage with minimal shake, you also have built-in image stabilisation. Your shot will look like you used a gimbal when using Active Mode that used both optical and electronic elements.
OLED Viewfinder and 3.5" LCD
The PXW Z 200 includes an OLED viewfinder providing a clear 2.36MP view while blocking ambient light, along with a 3.5" articulated LCD for monitoring with a sun hood included.
Recording Options
Multiple recording options are available to select the best solution for each project. XAVC S-I produces the best quality, 10-bit 4:2:2 4K (QFHD) provides a post-friendly recording. Recording using Intra-Frame XAVC HS-L (H.265) and XAVC S-L (H.264) provide a choice of 4:2:2 or 4:2:0 with Long GOP recording provides file-saving efficiency and longer recording times. XAVC HS enables the recording of smaller proxy files (up to 16 Mbps) for previewing and editing.
Dual Memory Card Slots
Dual memory card slots can be found that are compatible with both CFexpress Type A cards as well as SD cards.
Wireless Remote Control and Monitoring
The Monitor and Control App can be used with built-in Wi-Fi connectivity. With this, you can check your framing and monitor and adjust camera controls.
4-Channel Audio
Uo to four channels for audio recording can be used by combining the MI (multi-interface) shoe and the XLR connectors. Audio dials let you quickly adjust levels for two channels without needing to scroll through a menu.
Sony Battery Power
The Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder uses the BP-U35, BP-U70, or BP-U100 battery packs like many cameras in Sony's lineup allowing you to use your existing supply of batteries.
FEATURES
- Single 1" Exmor RS CMOS Sensor
- 12G-SDI Out, up to UHD 4K60 HDR with HLG
- 2.4/5 GHz Live Streaming, Timecode I/O
- AI-Powered Autofocus and Auto-Framing
- 20x Optical, 30x Clear Image Zoom in 4K
- 4K120 and 1080p240 High-Frame Rates
- XAVC S-I, HS-L, S-L, HD/QFHD Recording
- S-Cinetone, ITU709, 709tone, HLG Options
- Dual CFexpress Type-A/SD Card Slots
- 4-Channel Audio, Monitor and Control App
SPECIFICATIONS
|
Imaging |
|
| Sensor Resolution |
Actual: 20.9 Megapixel Effective: 14 Megapixel |
| Image Sensor |
13.2 x 8.8 mm (1"-Type) CMOS |
| Image Stabilization |
Optical in Integrated Lens Digital |
| Built-In ND Filter |
2 to 7 Stop Electronic ND Filter |
| Capture Type |
Video Only |
|
Exposure Control |
|
| Shutter Type |
Electronic Rolling Shutter |
| Shutter Speed |
1/8000 to 64 Seconds |
| ISO Sensitivity Range |
250 to 16,000 |
| Gain | -3 to 36 dB |
| Minimum Illumination |
1.2 Lux |
| White Balance |
2000 to 15,000K Presets: ATW, Auto |
|
Lens |
|
| Focal Length |
7.71 to 154.21mm (35mm Equivalent: 24 to 480mm) |
| Optical Zoom Ratio |
20x |
| Max Digital Zoom |
1.5x ( in UHD 4K) 2x ( in 1080p) |
| Maximum Aperture |
f/2.8 to 4.5 |
| Minimum Focus Distance |
1.0 cm |
| Filter Size |
72 mm |
| Focus Control |
Autofocus Manual Focus |
|
Video Capture |
|
| Internal Recording Modes |
H.264/H.265/XAVC HS/XAVC S UHD 4K (3840 x 2160) up to 120 fps 1920 x 1080p up to 240 fps |
| Fast-/Slow-Motion Support |
Yes |
| Gamma Curve |
HDR-HLG, Rec709, S Cinetone, Sony S-Log 3 |
| Broadcast Output |
NTSC/PAL |
| Built-In Microphone |
Stereo |
| Audio Recording |
4-Channel 24-Bit 48 kHz LPCM Audio |
| IP Streaming |
H.264, H.265, RTMP, RTMPS, SRT 3840 x 2160 1920 x 1080 1280 x 720 |
|
Interface |
|
| Media/Memory Card Slot |
Dual Slot: CFexpress Type A / SD (UHS-II) |
| Video I/O |
1x BNC (12G-SDI) Output 1x HDMI (Unspecified Signal) Output |
| Audio I/O |
1x 3.5 mm TRS Stereo Input 2x XLR 3-Pin Input 1x 3.5 mm TRRS Headphone/Mic Headphone Output |
| Power I/O |
1x USB-C |
| Other I/O |
1x BNC (Timecode) Input/Output 1x 2.5 mm Sub-Mini (Remote) Control 1x RJ45 (LAN) Control 1x USB-C (USB 3.2 / 3.1 Gen 1) |
| Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) |
| Mobile App Compatible |
Yes: Android & iOS |
| Global Positioning (GPS, GLONASS, etc.) |
No |
|
Monitor |
|
| Display Type |
Articulating Touchscreen LCD |
| Display Size |
3.5" |
|
Viewfinder |
|
| Type | Built-In Electronic |
| Size |
0.39" |
| Diopter Adjustment |
-4 to +3 |
|
Focus |
|
| Focus Type |
Auto and Manual Focus |
| Autofocus Points |
Phase Detection: 475 |
|
Environmental |
|
| Operating Temperature |
0 to 40°C |
| Storage Temperature |
-20 to 60°C |
|
General |
|
| Battery Type |
Sony BP-U Series |
| Power Consumption |
20 W |
| Shoe Mount |
1x Intelligent Hot Shoe |
| Dimensions (W x H x D) |
175.6 x 201.3 x 371.6 mm |
| Weight |
1.96 kg (Body Only) |
IN THE BOX
- Sony PXW-Z200 4K 1" CMOS Sensor XDCAM Camcorder
- AC Adapter
- Power Cord
- Battery Charger
- Battery Pack
- LCD Hood
- Lens Hood
- Eyecup
- Microphone Holder
- Cold Shoe Kit
